Analog FET and Tube Compressor

Next Batch:October 2024

Original price was: $1,290.00.Current price is: $1,090.00.

Category: Tags: ,

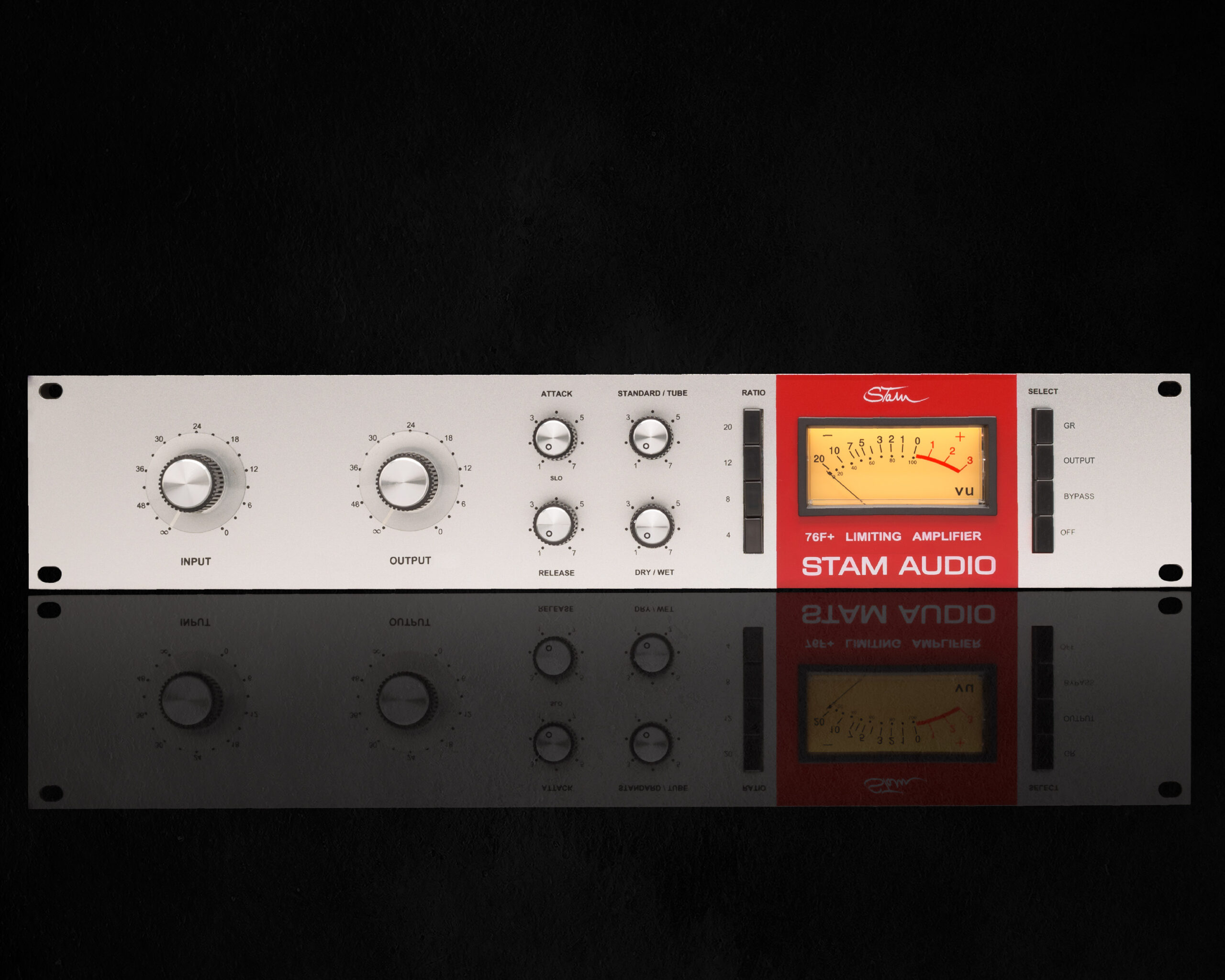

Introducing the Stam Audio SA-76F+

With a fully discrete signal path, Custom sowter input audio transformer, dual Carnhill output transformers, a tube output stage and two newly added blend controls we are happy to declare the SA-76F+ not only the most accurate replica of the vintage UREI 1176 Revision F in the market, but also the most exciting and versatile one.

Handmade one by one at our lab in Chile by our small team of engineers, we pride ourselves in delivering the most authentic and accurate reproduction made today of this beloved compressor, while incorporating several modern features and keeping it affordable for our users.

With so many manufacturers recreating this classic unit, we decided to step up our game and offer a truly unique 1176 without sacrificing the classic tone and operation of the original unit. We did this by adding a second tube output stage, which turns this 1176 into a tube 1176, taking this classic compressor to a whole new level.


Tube Output Stage

Unlike any other replica currently made, the SA-76F+ has a built-in and selectable tube output circuit option which can be added into the circuit with a blend control potentiometer. The tube output stage includes a ECC88 valve and two Carnhill output transformers that take this classic compressor to a whole new level, adding bigger low end and rich top end harmonic content. With the dual output stage now being fully variable, SA-76F+ users can now decide how much of each output section is present in the signal, giving you an array of colors to choose from and essentially 3 compressors in 1. The classic 1176 Rev F, the tube 1176 Rev F and a 50% hybrid between both.


New Features

The SA-76F+ also comes with a unity gain calibrated dry-wet blend control and the same super slow attack mod found on the SA-76 ADG, which is ideal for recording and mixing kicks and bass guitars.


Audio Transformers and Capacitors

Audio transformers are the single most important part in reproducing a vintage unit’s unique timbre, tone and frequency response. At the Stam Audio Lab we have auditioned every single one of them and we can confidently say that the SA-76F+ features a Sowter 1260 input transformer, which is an identical replica of the original UTC O-12 (Ratio 1:1.58 200/500 Ohms) and two Carnhill output transformers that precisely match the ratio and frequency response of the originaL B11148 found on Rev F.

We have made no compromise in parts such as Vishay capacitors, quality resistors and matched, selected transistors to ensure you will get the best sounding unit without cutting any corners. All 76F+ units are hand-made and calibrated in our workshop in Chile where they get a full quality check and 48-hour burn.


100% satisfaction guarantee – if you don’t love your SA-76F+, we’ll refund you

If you’ve used an original 1176 revision F before, we’re extremely confident our SA-76F+ will put a big smile on your face every time you use it. However, if you’ve never touched the original before, as gear lovers ourselves, we understand that the only way to really know if this compressor is right for you, is to put it through its paces. That’s why the SA-76F+ comes with a 30-day money back guarantee. This allows you to get it into your rack and see how it impacts your recordings. If you love it (and we think you will!), great…keep the unit and create amazing music with it. If not, no problems. Just send it back to us and we’ll fully refund your purchase.

Technical Specs

  • Sowter input and output transformer
  • Two Carnhill output transformers
  • ECC88 tube (NOS tube available per request)
  • Dual output stages
  • Blend control between solid state and tube output stages
  • F.E.T gain reduction
  • Dry-Wet blend control
  • 20 microseconds to 800 microseconds attack time
  • Adjustable release time – 50ms to 1.1 seconds
  • XLR input
  • XLR output
  • Voltage switch selector (115V or 230V)
  • Internal toroidal transformer
  • Final assembly by hand in Chile
  • 2-year warranty
  • 5 year optional warranty (100 USD)
  • 30-day money back guarantee
